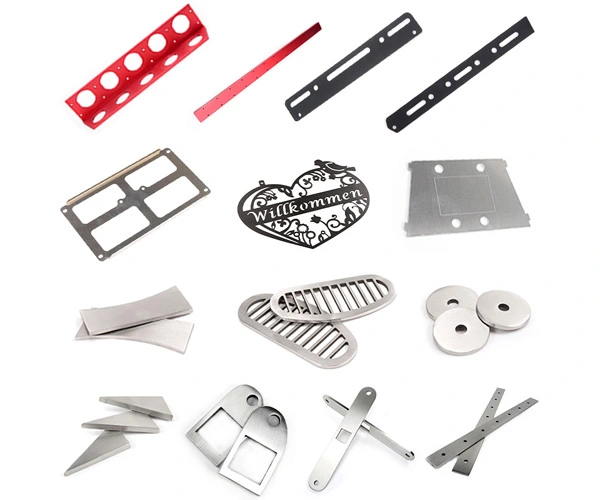

Competitive Price Sheet Metal Laser Cutting

  • Product Item: l -7

  • Material: carbon steel plate S355

  • Thickness: 0.5-3mm

  • Surface treatment: no

  • No deburs

Competitive Price provide Bending, Sheet Metal forming, sheet metal process, Laser Cutting Services


Description of Competitive Price Sheet Metal Forming, Laser Cutting Services


Laser cutting allows great flexibility, accuracy and top quality. It can cut very complex shapes.


State of the art automated laser cutters need little manpower. Combining their autonomous nature to their swiftness, Yixing Technology's online Laser cutting platform allows to keep your project costs low.


The accuracy tolerance for positioning is +/- 0.1 mm. Thermal effects on the material are small, therefore it is possible to cut small holes with a minimum diameter of 1/2 the material thickness as well as holes that can be threaded after cutting without requiring additional machining. The cutting line width it is smaller than 0.5 mm for most materials.


Yixing Technology's manufacturing network offers lasers that can cut a number of materials. These include carbon steel, stainless steel, high-strength steels as well as non-ferrous materials like aluminum, brass, copper and titanium. For metal plates thicker than 20 mm, see more about our plasma cutting capabilities. Aluminium cutting has its own rules.


Our Capabilities of Competitive Price Sheet Metal Forming, Laser Cutting Services


Cutting area Up to 3200 x 20000 mm

Cutting thickness

Carbon Steel <25 mm

Stainless Steel <30 mm

Aluminum <30 mm

Copper alloys <12 mm

Laser sources Both CO2 and fibre lasers up to 10 kW

Repeatability Ps: +/- 0.05 mm

Positioning accuracy Pa: +/- 0.1 mm





OEM Services
