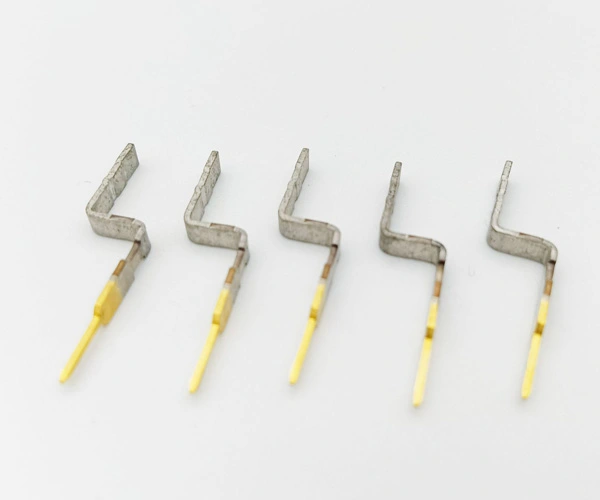

Irregular Pins

Detailed Explanation of the Processing Steps for Progressive Stamping Molds

1. Selection of raw materials

The raw materials for progressive stamping molds are generally tool steel, high-speed steel, and alloy steel, which have the characteristics of high hardness, high wear resistance, and high thermal stability. When selecting raw materials, it is necessary to choose according to the specific mold structure and design requirements, and ensure the stability and reliability of raw material quality.

2. CNC machining

CNC machining is one of the key steps in progressive stamping die machining. The machining process includes multiple steps such as turning, milling, and grinding, requiring precise machining equipment and high-level technical personnel for operation. CNC machining can greatly improve the machining accuracy and efficiency of molds, while also reducing machining costs and reducing labor losses.

3.Heat treatment

For progressive stamping molds, heat treatment is an indispensable processing step. Heat treatment can improve the physical and chemical properties of the mold, as well as enhance indicators such as wear resistance, strength, and toughness. Common heat treatment methods include quenching, tempering, isothermal quenching, surface carburization, and high-temperature annealing.

4. Cutting and assembly

After processing and heat treatment of the continuous stamping mold, cutting and assembly are also required. Firstly, it is necessary to cut the processed mold and inspect the surface defects and deformations of the mold. Then assemble according to the mold design requirements to ensure the reliability and service life of the mold.

5. Trial molding and debugging

Trial molding and debugging are the final steps in ending progressive stamping mold processing. Through trial and debugging, the processing quality and performance of the mold can be inspected, potential problems can be identified and solved, and the effectiveness of the mold can be ensured. During the trial and debugging process, it is necessary to focus on factors such as the accuracy, stability, wear, and ease of operation of the mold.

In summary, progressive stamping die processing is a complex and precise process that requires high-level technology and strict processing flow control. Only by selecting raw materials reasonably and strictly adhering to processing standards can high-quality and high-efficiency mold products be produced.
